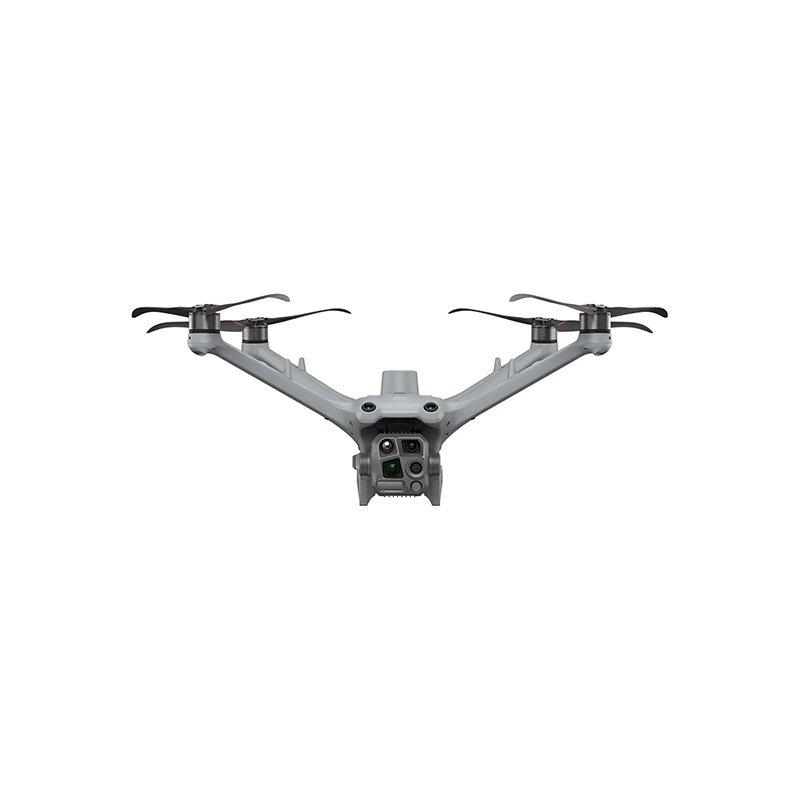

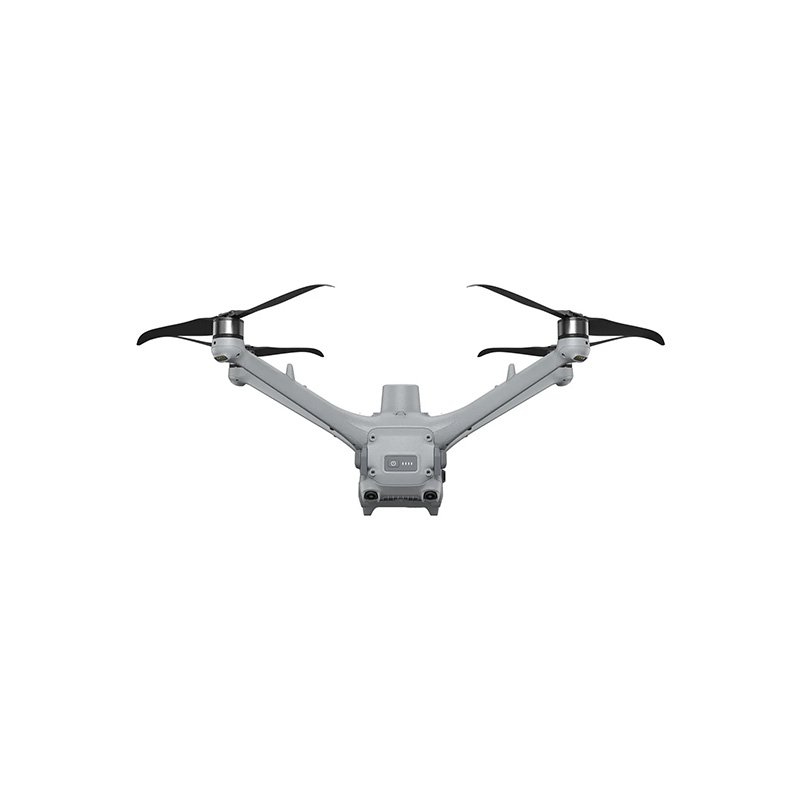

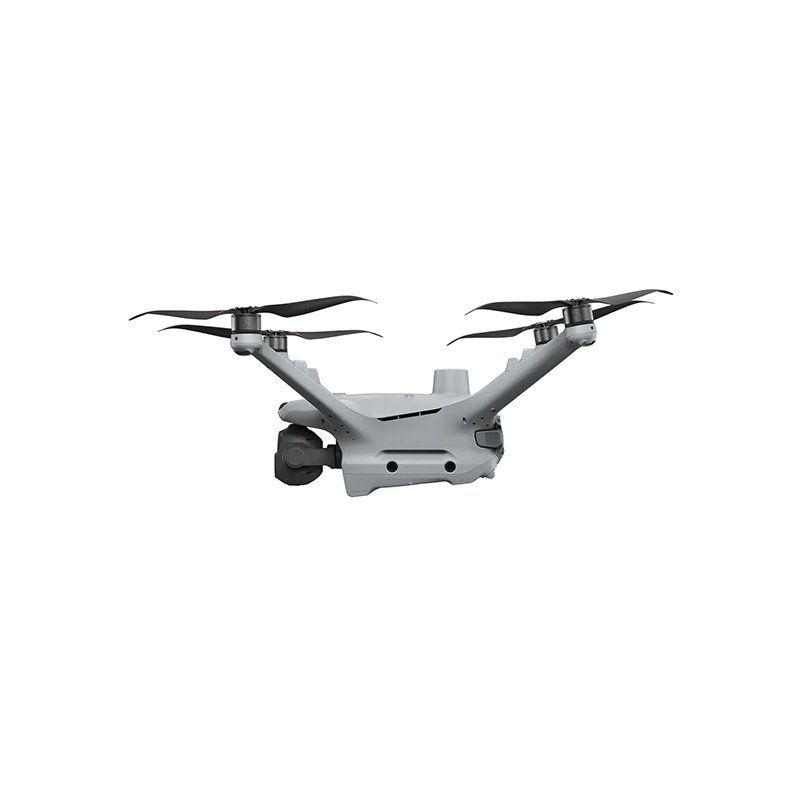

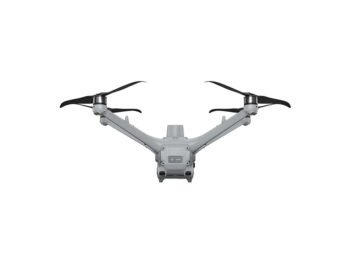

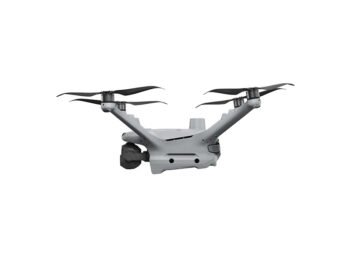

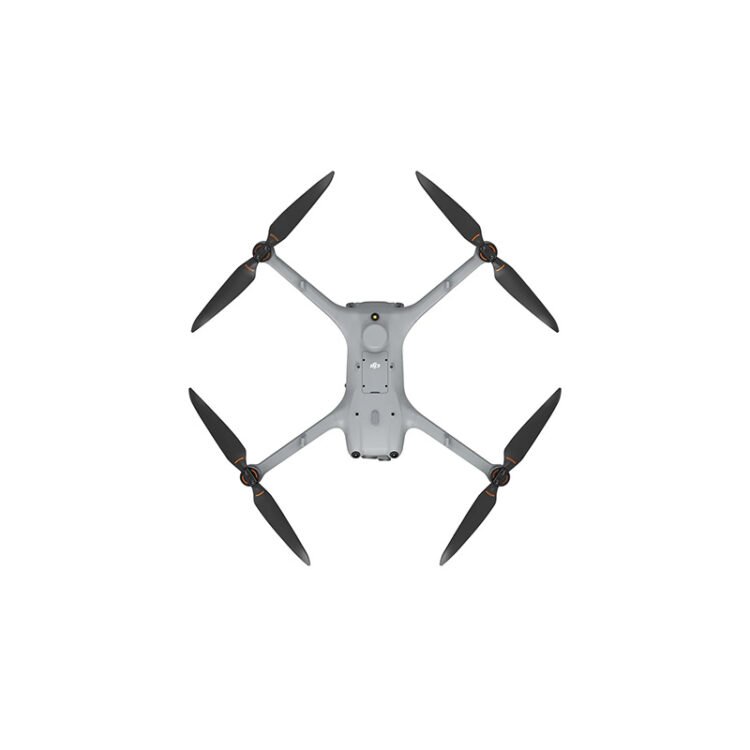

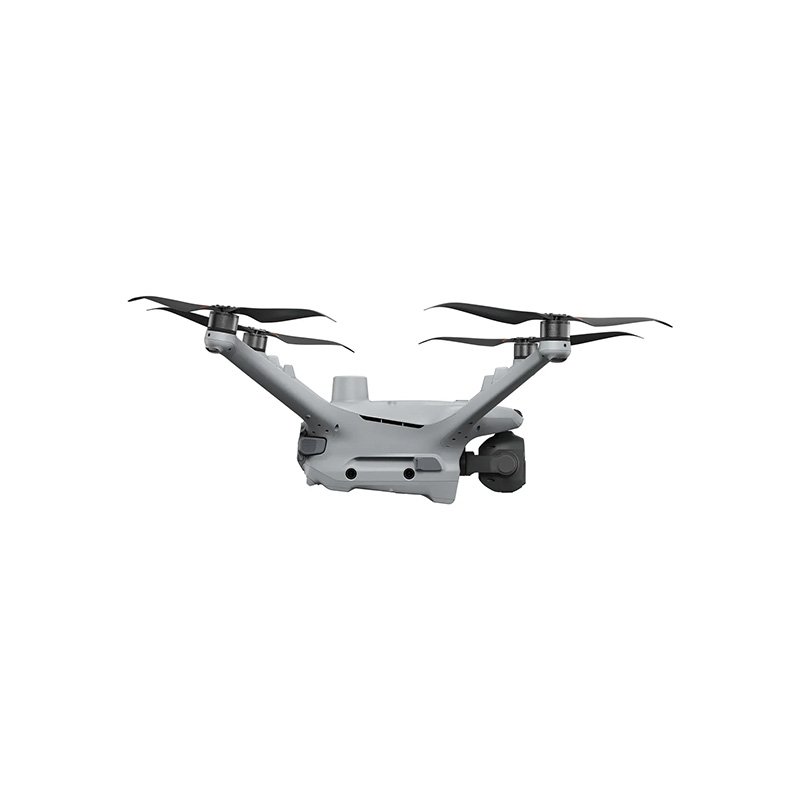

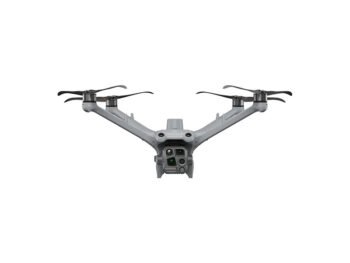

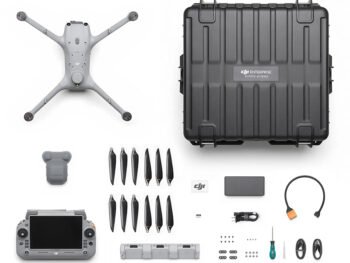

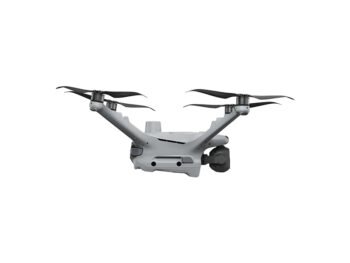

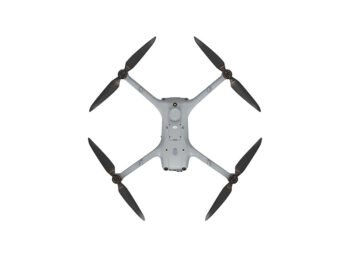

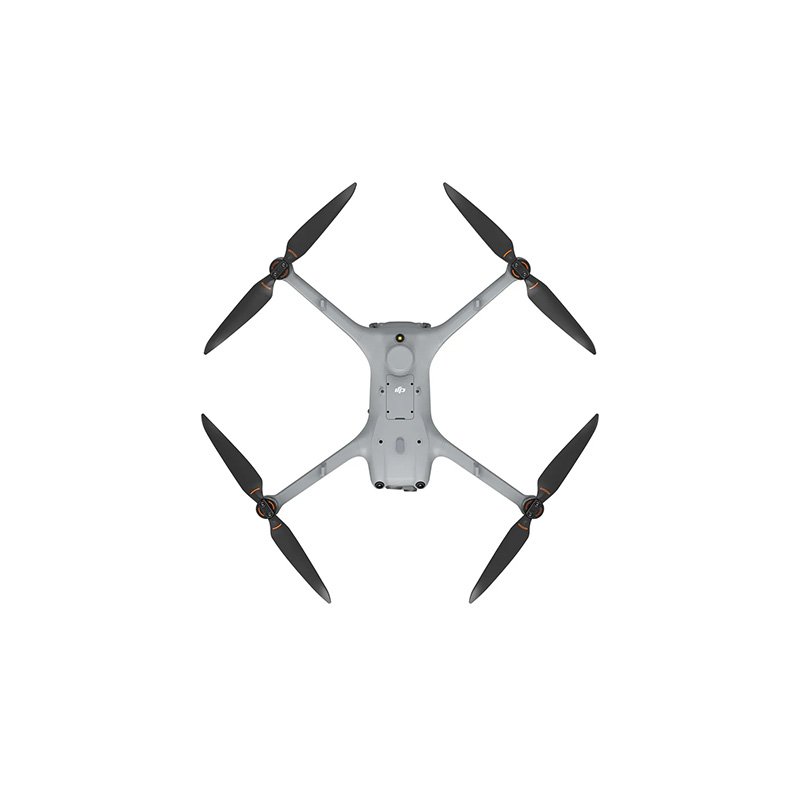

DJI Matrice 4TD Thermal Drone Ready to Fly Package – *Including battery*
£7,665.00 Incl.VAT
￡6132.00(Ex.VAT)

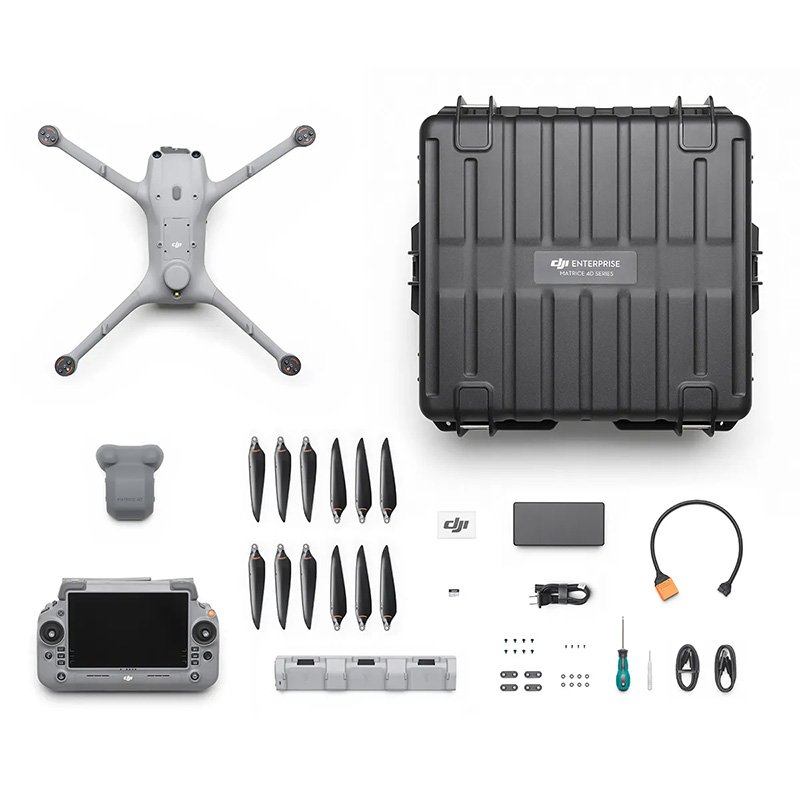

The DJI Matrice 4TD Ready to Fly Package includes the drone and battery. With thermal, zoom, and AI tracking, it’s ideal for rescue, inspection, and monitoring missions.
Share:
DJI Matrice 4TD Thermal Drone Ready to Fly Package – *Including battery*(DJIMAT4TDRC2UK-1)
Autonomous Operations Solution
The DJI Matrice 4TD Thermal Drone Ready to Fly Package – *Including battery* revolutionises enterprise operations through fully automated workflows. Designed for 24/7 mission readiness, this integrated system enables scheduled flights with self-managing takeoff/charging cycles, eliminating manual intervention for routine inspections and surveillance tasks. Its ruggedised Dock 3 station ensures weather-resistant protection (-20° to 50°C operational range) while maintaining a continuous power supply.
Advanced Thermal Imaging Capabilities
Equipped with a high-resolution 640×512 thermal sensor operating at 30Hz, the drone detects thermal anomalies with ≤50mK sensitivity. Key applications include:

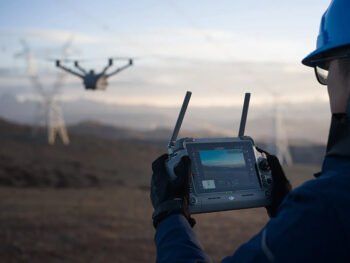

- Infrastructure Inspection: Identify overheating components in energy grids/facilities
- Search & Rescue: Locate heat signatures through foliage and darkness
- Agricultural Monitoring: Detect crop stress/variability via multispectral analysis
The integrated laser rangefinder provides centimetre-accurate positioning for precise data collection.
Enterprise-Grade Performance
This thermal drone delivers exceptional endurance with a 90-minute flight time, supporting:
- Heavy payload configurations (RTK module/loudspeaker compatible)
- IP55-rated weather resistance for all-condition operations
- 6-directional obstacle avoidance in complex environments
Compatible with DJI FlightHub 2 for centralised fleet management across multiple Dock 3 stations.
Precision Data Collection
The synchronised dual-sensor gimbal captures simultaneous thermal and visual data with:
- 32x optical zoom for detailed visible-light imaging
- Temperature measurement accuracy of ±2°C (±2%) across -20°-500°C range
- Automated PDF report generation through DJI Thermal Analysis Tool 3.0
Industry-Specific Advantages
- For public safety, Rapid nighttime deployment identifies suspects or missing persons
- For the energy sector, Automated pipeline/power line inspections reduce downtime by 40%
- Conservation use: Wildlife population monitoring without habitat disturbance
Learn More: DJI
| Weight | 1850 g |
|---|---|
| Max Takeoff Weight (Standard Propellers) | 2090 g |
| Dimensions | 377.7×416.2×212.5 mm (L×W×H) |
| Diagonal Wheelbase | 438.8 mm |
| Front Motor Left-Right Wheelbase | 383.0 mm |
| Rear Motor Left-Right Wheelbase | 343.0 mm |
| Front-Rear Wheelbase | 341.6 mm |
| Max Ascent Speed ( Normal Mode) | 6 m/s |
| Max Ascent Speed ( Sport Mode) | 10 m/s |
| Max Descent Speed ( Normal Mode) | 6 m/s |
| Max Descent Speed ( Sport Mode) | 8 m/s |
| Max Wind Speed Resistance | 12 m/s |
| Max Flight Time | 54 minutes |
| Max Operating Radius | 10 km |
| Max Flight Distance | 43 km |
| Max Pitch Angle (Normal Mode) | 25° |
| Max Pitch Angle (Sport Mode) | 30° |
| Max Angular Velocity | 200°/s |
| Operating Temperature | -20° to 50° C |
| Ingress Protection Rating | IP55 |
| Motor Model | 2611 |
| Propeller Model1364F | foldable low-noise anti-ice propellers |
| RTK Model | Integrated on the aircraft |
| Beacon | Integrated on the aircraft |
| Wide (Camera Sensor) | 1/1.3-inch CMOS, Effective Pixels |
| Medium Tele (Camera Sensor) | 1/1.3-inch CMOS, Effective Pixels |
| Telephoto (Camera Sensor) | 1/1.5-inch CMOS, Effective Pixels |
| Lens FOV | 82° |
| Lens Equivalent Focal Length | 24 mm |
| Lens Aperture | f/1.7 |
| Lens Focus | 1 m to ∞ |
| ISO Range (Normal Mode) | ISO 100 to ISO 25600 |
| Wide Camera (Night Scene Mode) | ISO 100 to ISO 409600 |
| Midum Tele Camera (Night Scene Mode) | ISO 100 to ISO 409600 |
| Tele Camera (Night Scene Mode) | ISO 100 to ISO 819200 |
| Shutter Speed | 2-1/8000 s |
| Max Photo Size Wide | 8064 × 6048 |
| Max Photo Size Medium Telephoto | 8064 × 6048 |
| Max Photo Size Telephoto | 8192 × 6144 |
| Video Coding Format | H.264/H.265 |
| Coding Strategy | CBR, VBR |
| Resolution 4K | 3840 × 2160@30fps |
| Resolution FHD | 1920 × 1080@30fps |
| Supported File System | exFAT |
| Video FormatMP4 | (MPEG-4 AVC/H.264) |
| Digital Zoom Telephoto | 16x (112x hybrid zoom) |
| Infrared Illumination | FOV |
| Laser Rangefinding Range | 1800 m (1 Hz) @20% reflectivity target |
| Thermal Camera Resolution | DJI Matrice 4T |
| Thermal Camera Pixel Pitch | 12 μm |
| Thermal Camera Frame Rate | 30 Hz |
| Thermal Camera Sensitivity | ≤50mk@F1.0 |
| Thermal Palette | White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
| Thermal Digital Zoom | 28x |
| Infrared Wavelength | 8um to 14um |
| Supported SD Cards | U3/Class10/V30 |

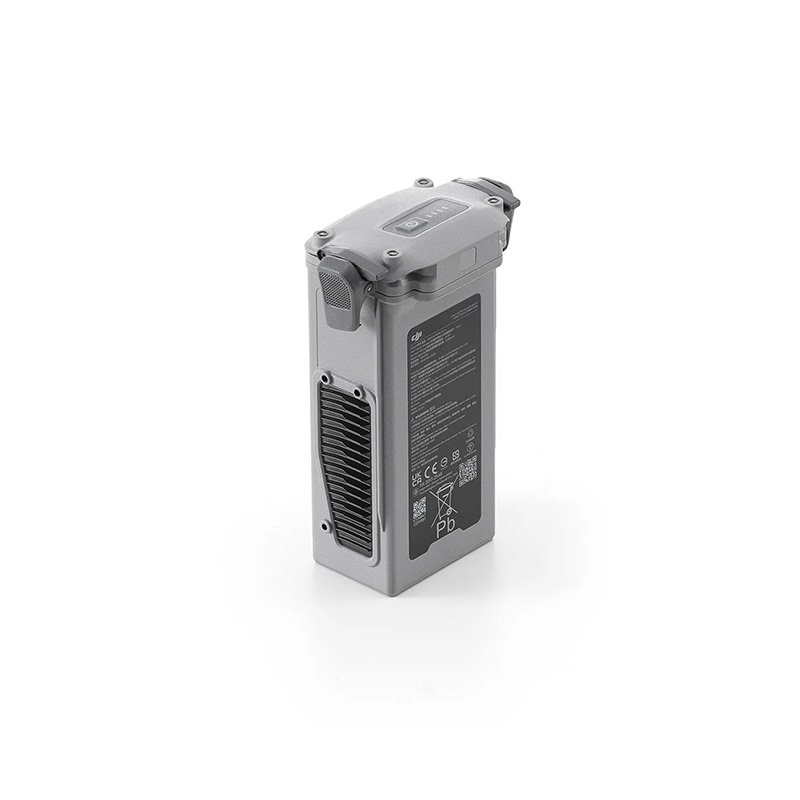

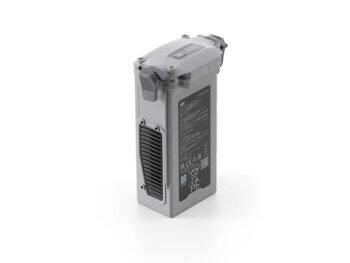

| Battery Capacity | 6768 MAh |
| Battery Voltage | 22.14 V |
| Battery Max Charging Voltage | 22.14 V |
| Battery Cell Type | Li-ion 6s |
| Battery Energy | 149.9 Wh Battery Weight |
| Battery Cycle Count | 400 |
| Battery Charging Temp | 5° to 45° C |
| Battery Discharge | Rate4C |
