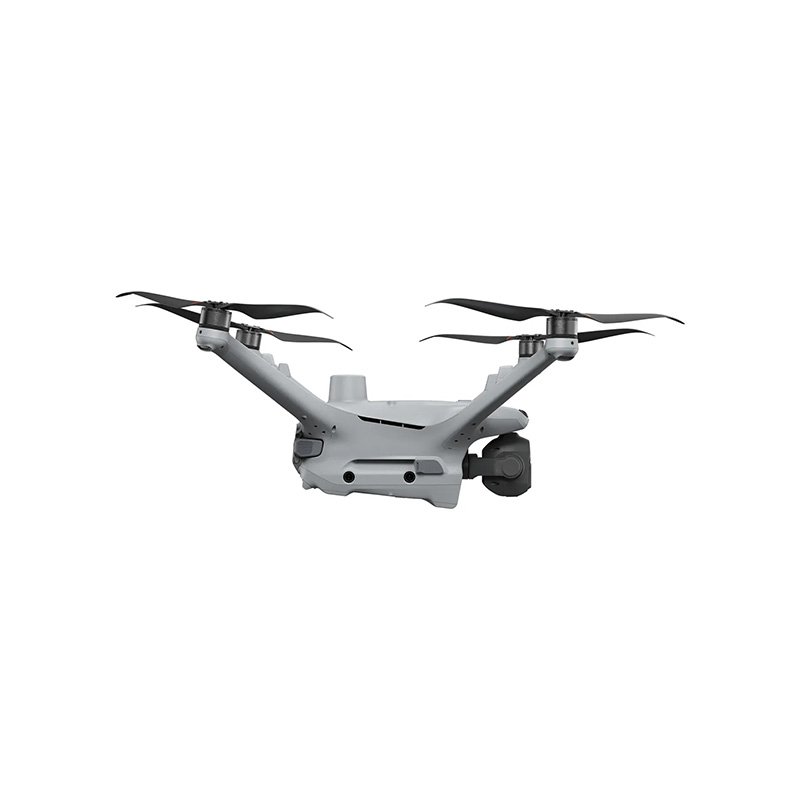

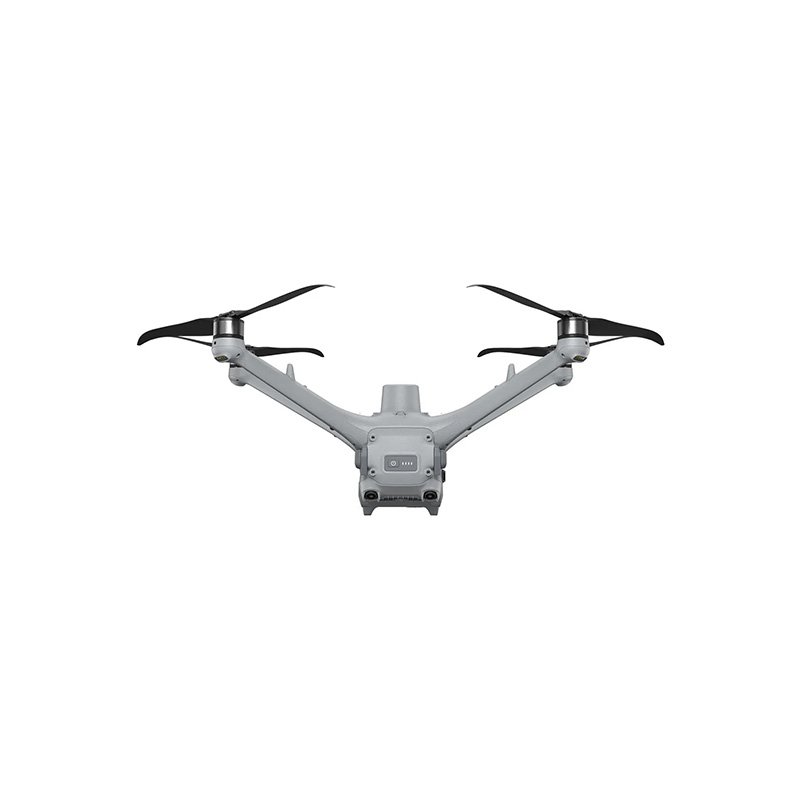

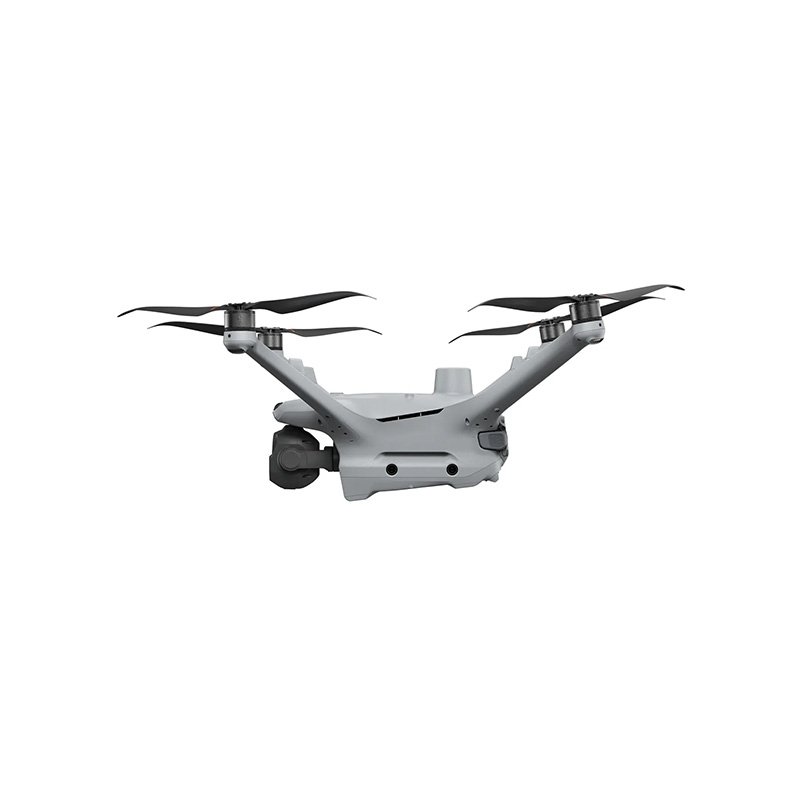

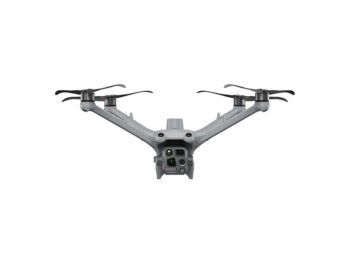

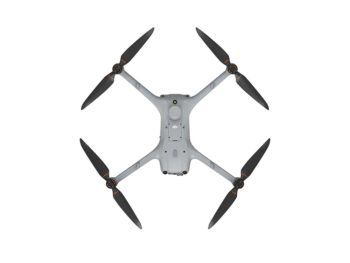

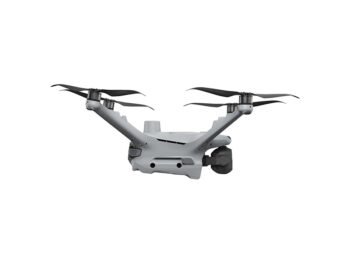

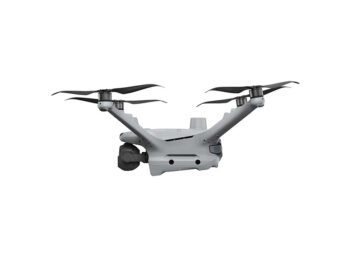

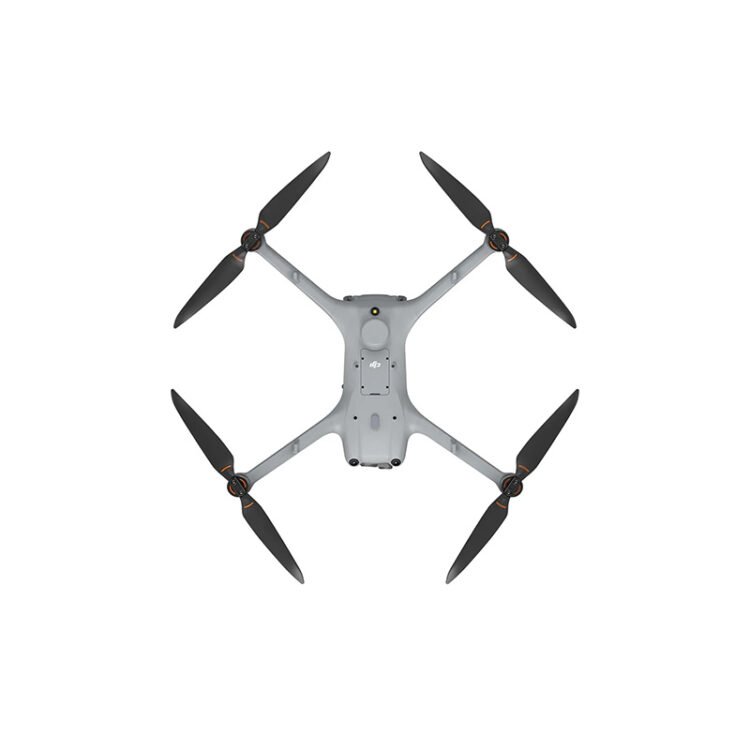

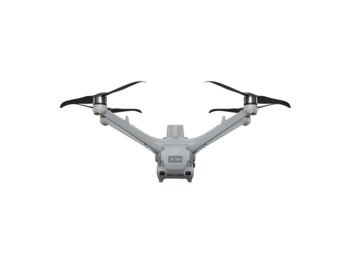

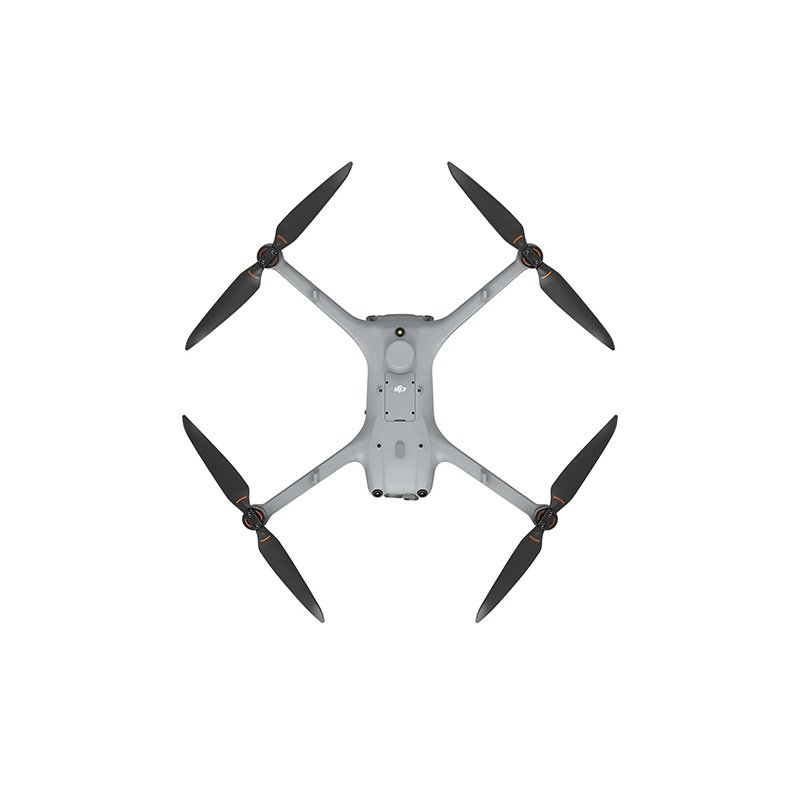

DJI Matrice 4TD Thermal Drone Standalone Package Excluding Batteries
£7,395.00 Incl.VAT
￡5916.00(Ex.VAT)
The DJI Matrice 4TD is a rugged, IP55-rated thermal drone with a multi-sensor payload, AI tracking, and advanced navigation. Designed for Dock 3 integration, this standalone package (battery excluded) is ideal for search and rescue, wildlife monitoring, and industrial inspections in demanding environments.
Share:

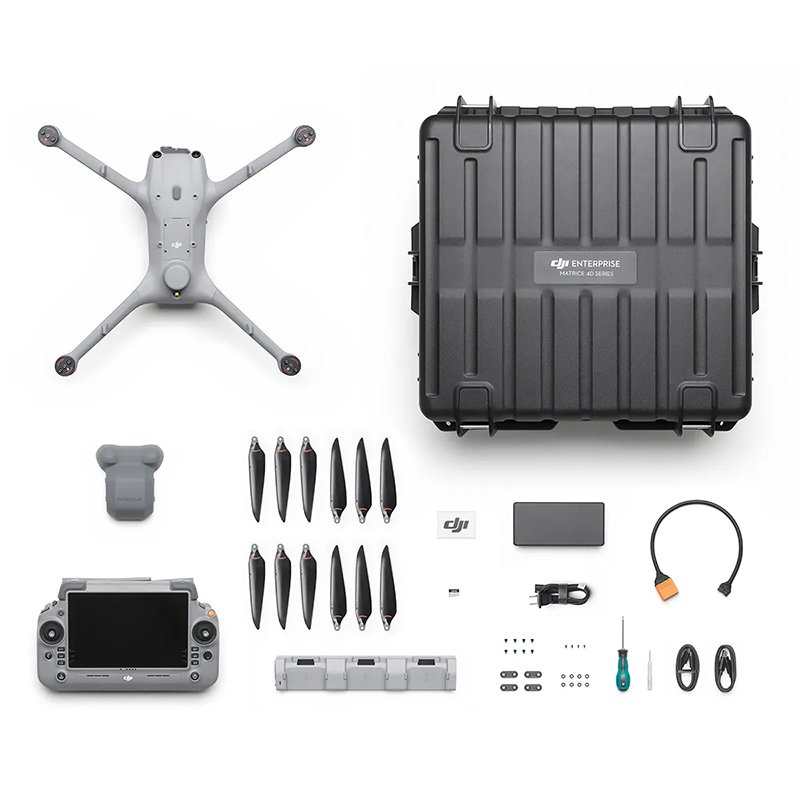

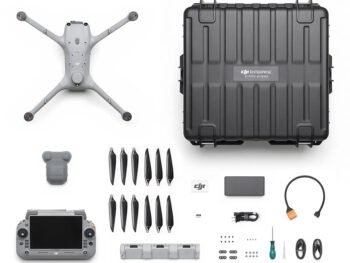

DJI Matrice 4TD Thermal Drone Standalone Package Excluding Batteries(DJIMAT4TDRC2UK)
Autonomous Operations Solution
The DJI Matrice 4TD Thermal Drone Standalone Package Excluding Batteries revolutionises enterprise operations through fully automated workflows. Designed for 24/7 mission readiness, this integrated system enables scheduled flights with self-managing takeoff/charging cycles, eliminating manual intervention for routine inspections and surveillance tasks. Its ruggedised Dock 3 station ensures weather-resistant protection (-20° to 50°C operational range) while maintaining a continuous power supply.
Advanced Thermal Imaging Capabilities
Equipped with a high-resolution 640×512 thermal sensor operating at 30Hz, the drone detects thermal anomalies with ≤50mK sensitivity. Key applications include:
- Infrastructure Inspection: Identify overheating components in energy grids/facilities
- Search & Rescue: Locate heat signatures through foliage and darkness
- Agricultural Monitoring: Detect crop stress/variability via multispectral analysis
The integrated laser rangefinder provides centimetre-accurate positioning for precise data collection.
Enterprise-Grade Performance
This thermal drone delivers exceptional endurance with a 90-minute flight time, supporting:
- Heavy payload configurations (RTK module/loudspeaker compatible)
- IP55-rated weather resistance for all-condition operations
- 6-directional obstacle avoidance in complex environments
Compatible with DJI FlightHub 2 for centralised fleet management across multiple Dock 3 stations.
Precision Data Collection

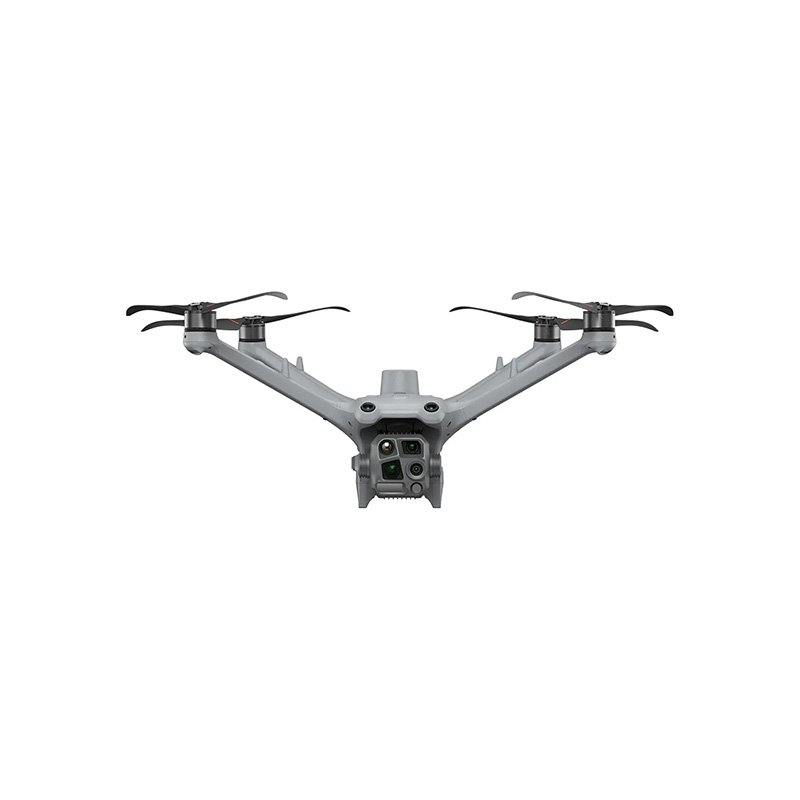

The synchronised dual-sensor gimbal captures simultaneous thermal and visual data with:
- 32x optical zoom for detailed visible-light imaging
- Temperature measurement accuracy of ±2°C (±2%) across -20°-500°C range
- Automated PDF report generation through DJI Thermal Analysis Tool 3.0
Industry-Specific Advantages
- For public safety, Rapid nighttime deployment identifies suspects or missing persons

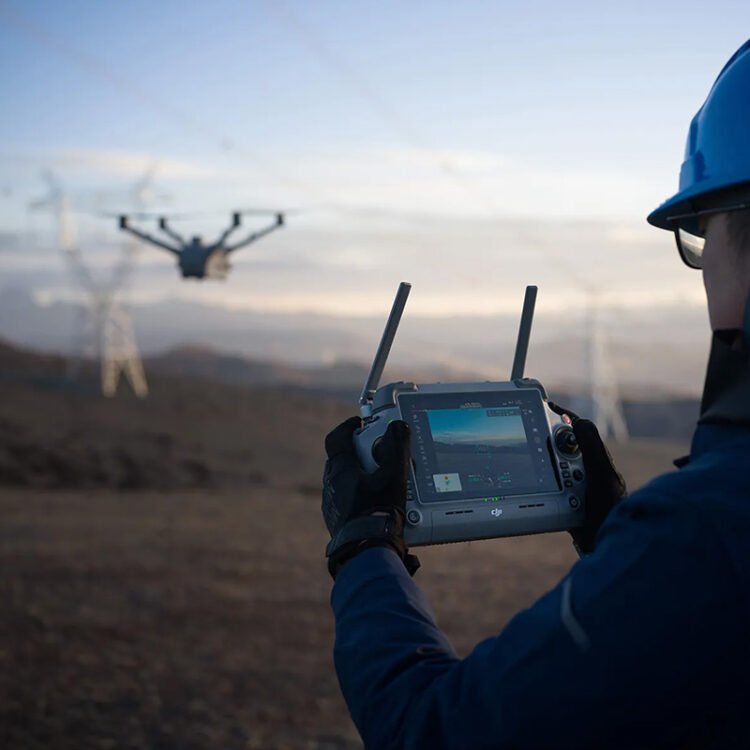

- For the energy sector, Automated pipeline/power line inspections reduce downtime by 40%
- Conservation use: Wildlife population monitoring without habitat disturbance
Learn More: DJI
Related products
ThermTec WILD 325 Thermal Monocular
Original price was: £1,349.00.£999.00Current price is: £999.00. Incl.VATIn stock
ThermTec ARES 360 Thermal Rifle Scope
Original price was: £1,999.00.£1,399.00Current price is: £1,399.00. Incl.VATIn stock
Sytong HT-70L Night Vision Rifle Scope
Original price was: £590.00.£459.00Current price is: £459.00. Incl.VATIn stock
DISCOVERYOPT 7075 Series Aluminum Scope Rings
£43.00 Incl.VATIn stock
Anytek S80 Thumb-Sized Action Camera
£39.99 Incl.VATIn stock
Thermal Master T2 pro Thermal Camera
£379.00 Incl.VATIn stock
SUNWAYFOTO T2830CSL-D Carbon Fiber Tripod
Price range: £55.95 through £249.95 Incl.VATIn stock
| Weight | 1850 g |
|---|---|
| Max Takeoff Weight (Standard Propellers) | 2090 g |
| Dimensions | 377.7×416.2×212.5 mm (L×W×H) |
| Diagonal Wheelbase | 438.8 mm |
| Front Motor Left-Right Wheelbase | 383.0 mm |
| Rear Motor Left-Right Wheelbase | 343.0 mm |
| Front-Rear Wheelbase | 341.6 mm |
| Max Ascent Speed ( Normal Mode) | 6 m/s |
| Max Ascent Speed ( Sport Mode) | 10 m/s |
| Max Descent Speed ( Normal Mode) | 6 m/s |
| Max Descent Speed ( Sport Mode) | 8 m/s |
| Max Wind Speed Resistance | 12 m/s |
| Max Flight Time | 54 minutes |
| Max Operating Radius | 10 km |
| Max Flight Distance | 43 km |
| Max Pitch Angle (Normal Mode) | 25° |
| Max Pitch Angle (Sport Mode) | 30° |
| Max Angular Velocity | 200°/s |
| Operating Temperature | -20° to 50° C |
| Ingress Protection Rating | IP55 |
| Motor Model | 2611 |
| Propeller Model1364F | foldable low-noise anti-ice propellers |
| RTK Model | Integrated on the aircraft |
| Beacon | Integrated on the aircraft |
| Wide (Camera Sensor) | 1/1.3-inch CMOS, Effective Pixels |
| Medium Tele (Camera Sensor) | 1/1.3-inch CMOS, Effective Pixels |
| Telephoto (Camera Sensor) | 1/1.5-inch CMOS, Effective Pixels |
| Lens FOV | 82° |
| Lens Equivalent Focal Length | 24 mm |
| Lens Aperture | f/1.7 |
| Lens Focus | 1 m to ∞ |
| ISO Range (Normal Mode) | ISO 100 to ISO 25600 |
| Wide Camera (Night Scene Mode) | ISO 100 to ISO 409600 |
| Midum Tele Camera (Night Scene Mode) | ISO 100 to ISO 409600 |
| Tele Camera (Night Scene Mode) | ISO 100 to ISO 819200 |
| Shutter Speed | 2-1/8000 s |
| Max Photo Size Wide | 8064 × 6048 |
| Max Photo Size Medium Telephoto | 8064 × 6048 |
| Max Photo Size Telephoto | 8192 × 6144 |
| Video Coding Format | H.264/H.265 |
| Coding Strategy | CBR, VBR |
| Resolution 4K | 3840 × 2160@30fps |
| Resolution FHD | 1920 × 1080@30fps |
| Supported File System | exFAT |
| Video FormatMP4 | (MPEG-4 AVC/H.264) |
| Digital Zoom Telephoto | 16x (112x hybrid zoom) |
| Infrared Illumination | FOV |
| Laser Rangefinding Range | 1800 m (1 Hz) @20% reflectivity target |
| Thermal Camera Resolution | DJI Matrice 4T |
| Thermal Camera Pixel Pitch | 12 μm |
| Thermal Camera Frame Rate | 30 Hz |
| Thermal Camera Sensitivity | ≤50mk@F1.0 |
| Thermal Palette | White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
| Thermal Digital Zoom | 28x |
| Infrared Wavelength | 8um to 14um |
| Supported SD Cards | U3/Class10/V30 |
| Battery Capacity | 6768 MAh |
| Battery Voltage | 22.14 V |
| Battery Max Charging Voltage | 22.14 V |
| Battery Cell Type | Li-ion 6s |
| Battery Energy | 149.9 Wh Battery Weight |
| Battery Cycle Count | 400 |
| Battery Charging Temp | 5° to 45° C |
| Battery Discharge | Rate4C |
