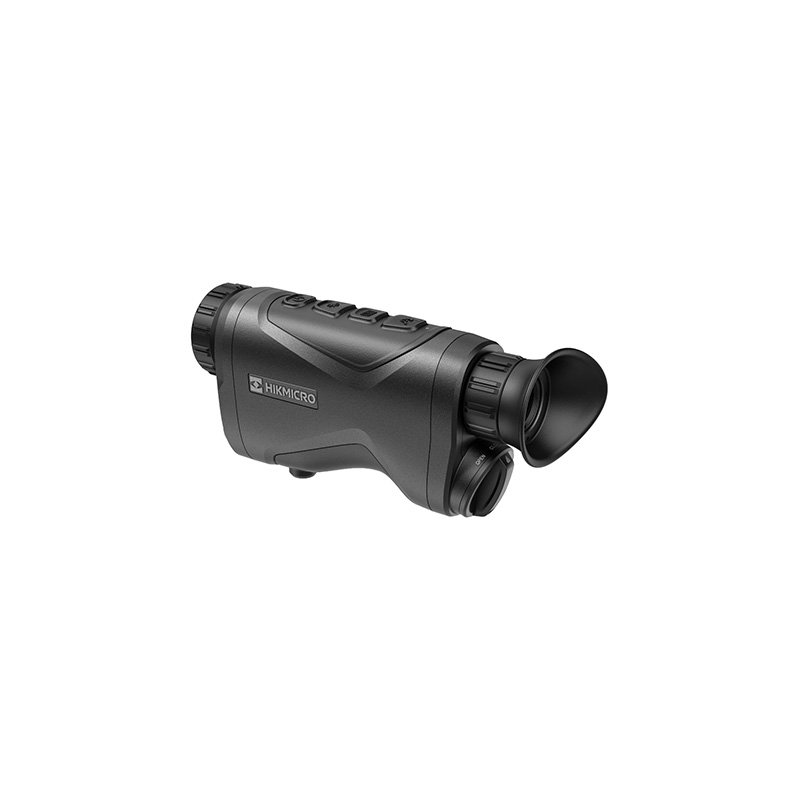

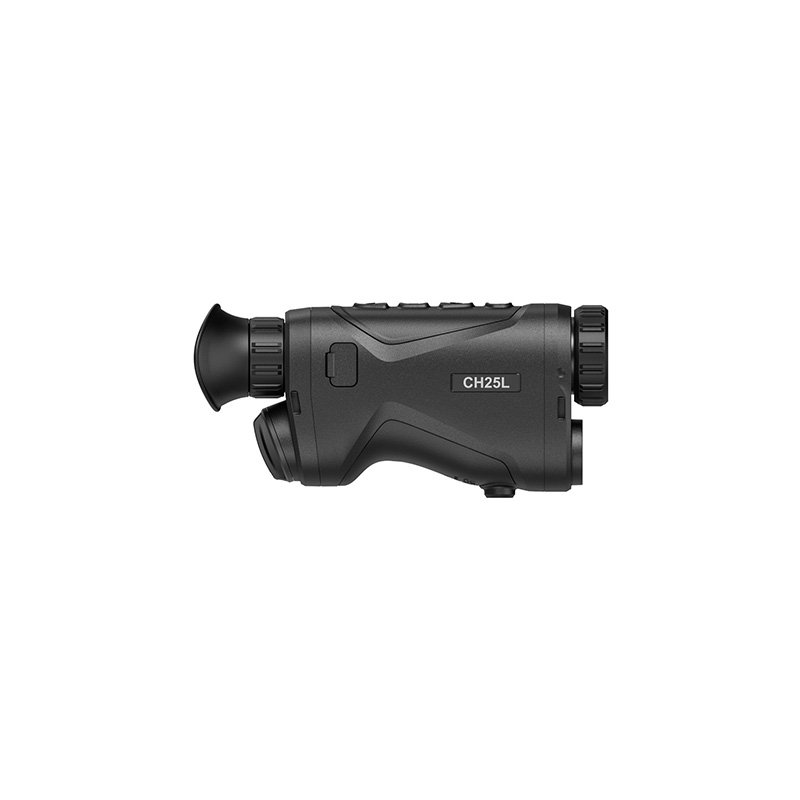

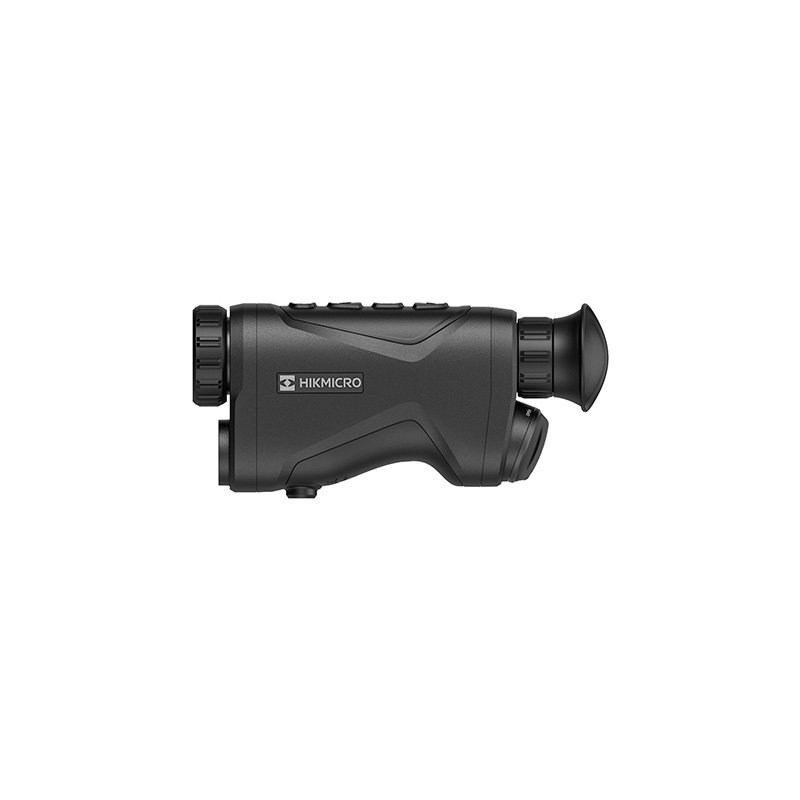

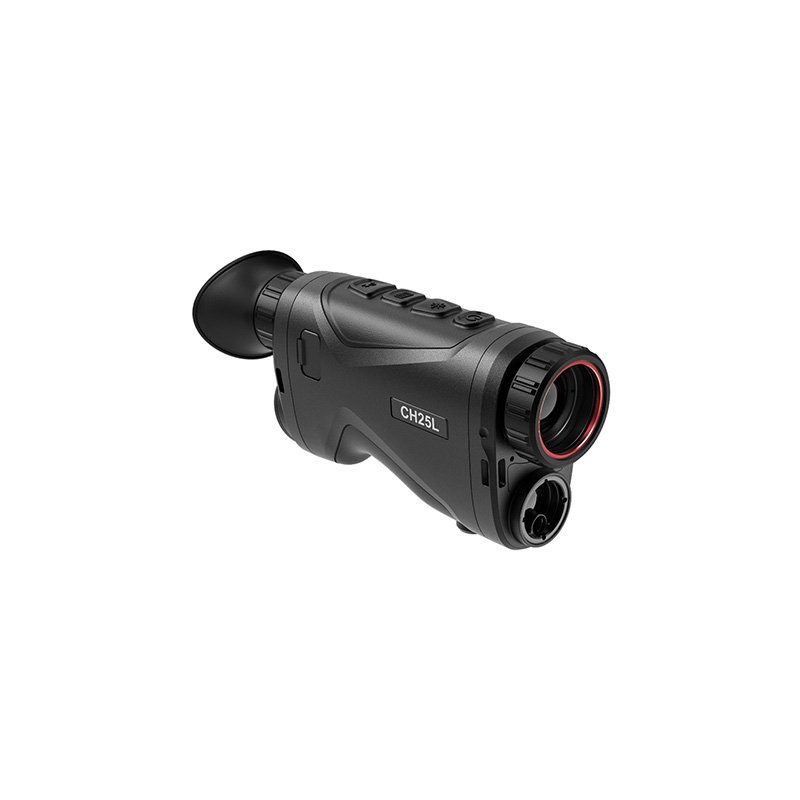

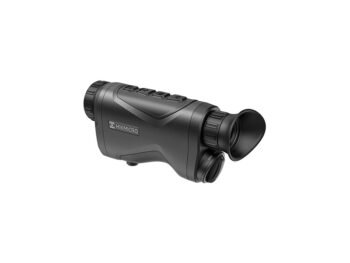

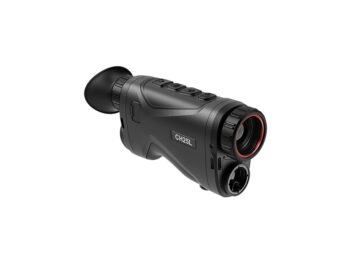

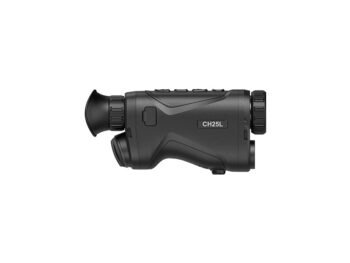

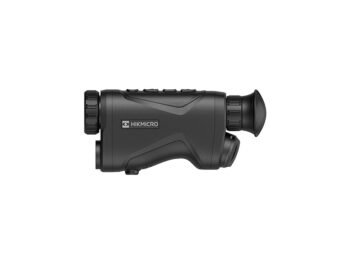

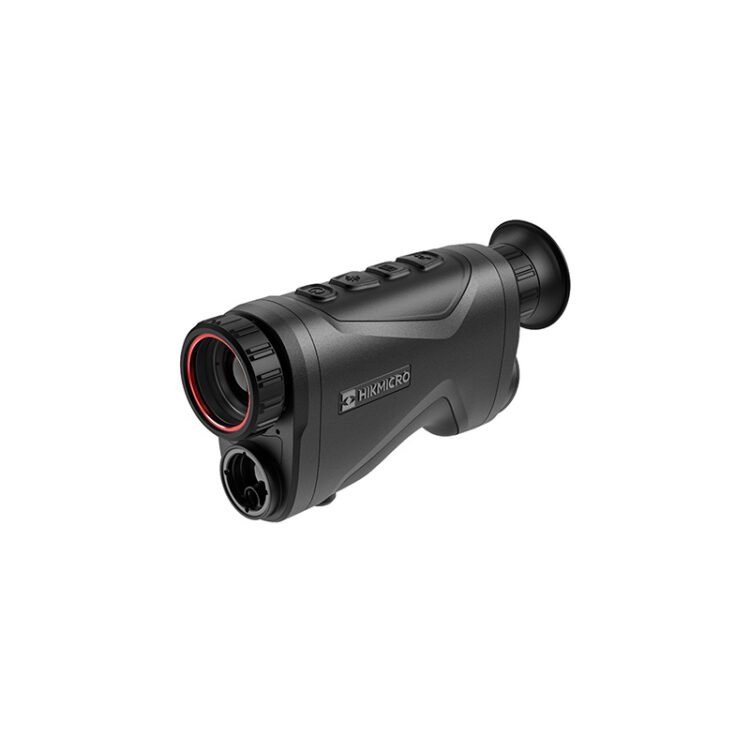

HIKMICRO Condor CH25L Thermal Monocular
Original price was: £1,599.99.£1,499.99Current price is: £1,499.99. Incl.VAT
￡1249.99(Ex.VAT)
The HIKMICRO Condor CH25L Thermal Monocular integrates a high-performance 384×288px thermal sensor. This advanced SUB 20mK NETD sensor originates from the acclaimed Falcon series. Additionally, it features a built-in 1000m laser rangefinder (LRF).
- 1000m Laser Range Finder;
- 384x288px 12um SUB 20 NETD sensor and a high performance F1.0 lens ensures perfect detail recognition;
- Magnesium alloy chassis with ergonomic grip and profiled buttons;
- The three batteries supplied in the box allow up to 13.5 hours of continuous use;
- Image Pro and Zoom Pro which can be used to optimise the sharpness of the image;
- Stream, control and record from your thermal monocular.
Share:
The HIKMICRO Condor CH25L Thermal Monocular integrates a high-performance 384×288px thermal sensor. This advanced SUB 20mK NETD sensor originates from the acclaimed Falcon series. Additionally, it features a built-in 1000m laser rangefinder (LRF). Consequently, you can precisely judge target distances, even in total darkness.
The HIKMICRO Condor CH25L Thermal Monocular couples this ultra-sensitive sensor with an F1.0 lens. Together, they ensure perfect detail recognition. A 25mm focal length delivers a wide field of view. Moreover, 2.5x base magnification enables rapid scanning. The system detects minute details, including animal hair and leaf textures. Thus, it delivers clear imagery in challenging weather conditions.
Its magnesium alloy chassis features an ergonomic grip. The profiled buttons enable intuitive operation immediately. Furthermore, the compact design fits comfortably in one hand. You can easily slip the monocular into any pocket. A single 18650 battery provides 4.5 hours of runtime. Three included batteries extend usage to 13.5 hours continuously.
Advanced HIKMICRO software controls the Condor. This includes Image Pro and Zoom Pro algorithms. These tools actively optimize image sharpness.
The system also shares HIK’s signature software features. You can select from four colour palettes. The HIKMICRO Sight app enables live streaming and recording. Built-in memory directly saves images and videos.
Learn More：HikMicro
| Model | Condor CH25L |
|---|---|
| Sensor Resolution | 384×288 |
| Frame Rate | 50Hz |
| Pixel Interval | 12μm |
| Response Waveband | 8μm to 14μm |
| NETD | Less than 20 mK (@25°C),F#=1.0 |
| Lens (Focal Length) | 25mm,f1.0 |
| Detection Range | 1200m |
| Focus Mode | Rear Focus Wheel |
| Field of View(H × V), Degrees / m @100m | 10.5° ×7.9°/ 18.3m × 13.8m |
| Min. Focusing Distance | 2.5m |
| Magnification | 2.5×-20.0× (8×) |
| Display | 1024×768, 0.39 inch, OLED |
| Contrast Adjustment | Yes |
| Brightness Adjustment | Yes |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 4mm |
| Eye Relief | 15mm |
| Diopter (Range) | -5D to +3D |
| Image Pro | Yes |
| Tone Adjustment | Cold, warm |
| Zoom Pro | Yes |
| Protection Level | IP67 |
| Weight | 386g without battery |
| Dimension | 180.7 mm × 52.7 mm × 85.4 mm (7.11" × 2.07" × 3.36 ") |
| Working Temperature | -30°C to +55°C |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Hotspot | 2.4/5G WiFi Waveband |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64GB) |
| PIP | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Audio Recording | Yes |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | 4.5 hours of continuous running with CVBS and hotspot function off (@25°C, one provided battery) |
| Type-C Power Supply | 5V DC, 2 A |
| Safety Class for Laser | Class 1 |
| Wavelength | 905nm |
| Max. Measuring Range | 1000m |
| Measurement Accuracy | ±1m |
| Min. Measuring Range | 10m |
