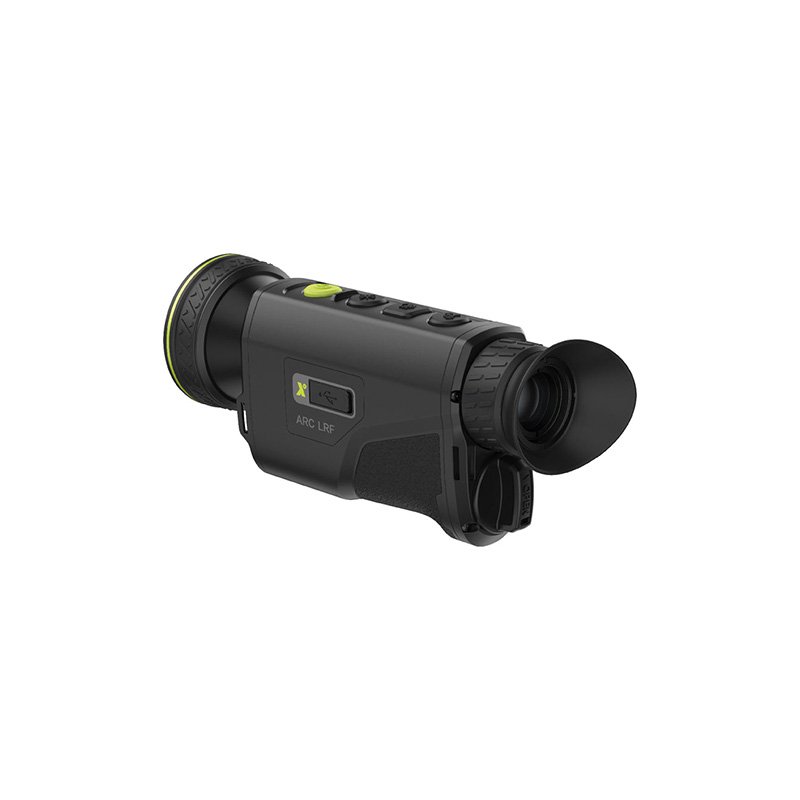

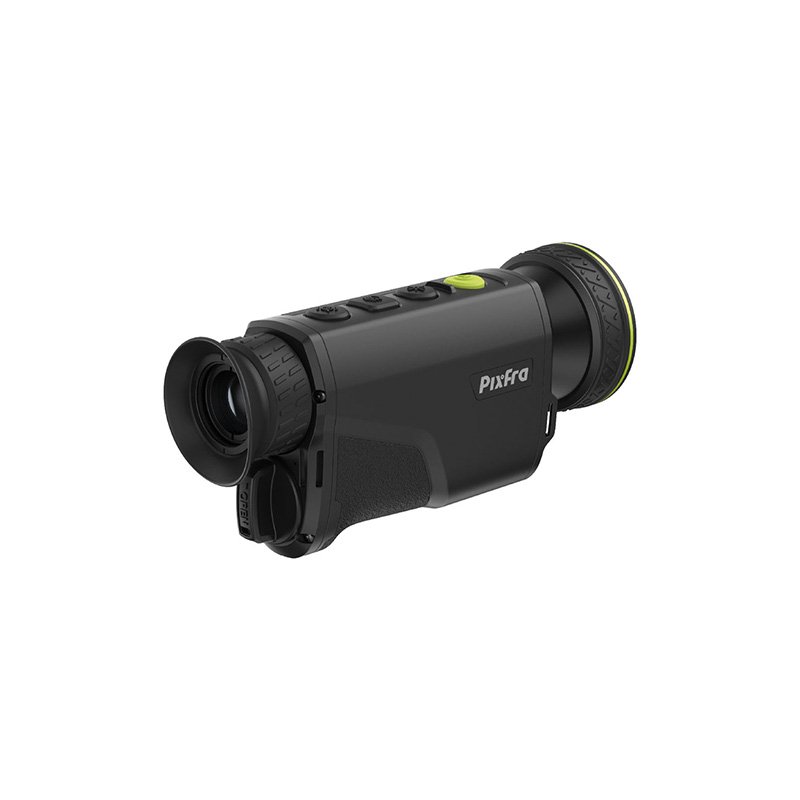

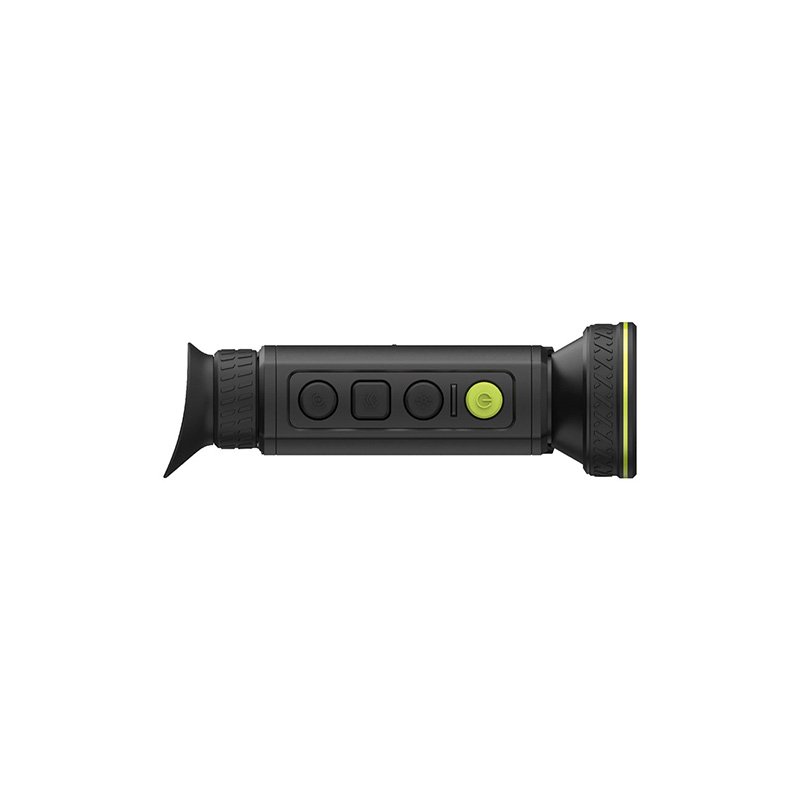

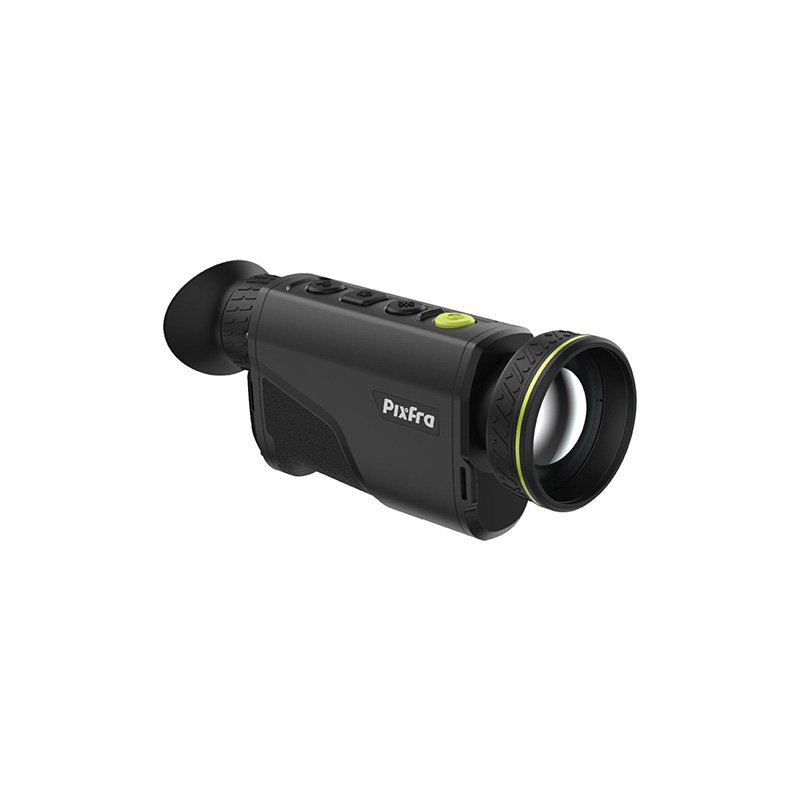

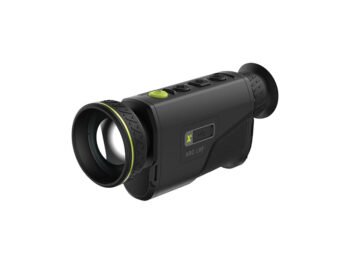

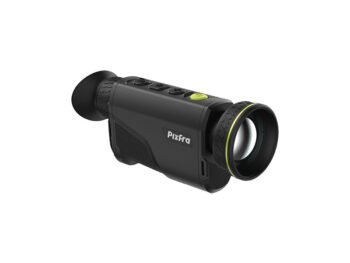

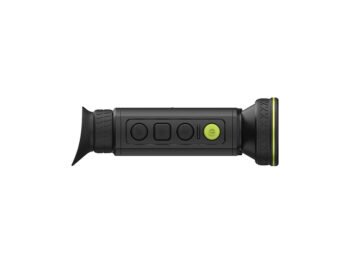

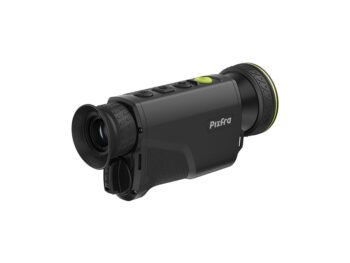

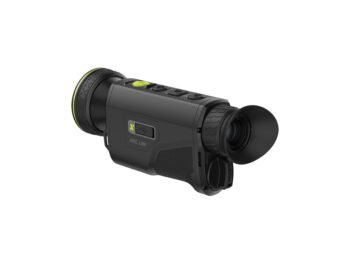

Pixfra ARC LRF A650 Pro 20MK Thermal Imaging Monocular
£1,839.95 Incl.VAT
￡1533.29(Ex.VAT)
The Pixfra ARC LRF A650 Pro thermal monocular is designed in a compact, lightweight format, providing high-quality thermal imaging performance. The Pixfra ARC LRF A650 Pro thermal monocular features a 640×512 resolution sensor in 12-micron pixel pitch and with a 20mk NETD sensitivity.
- Detection Range:2600m;
- Objective Lens (mm):50;
- Magnification:3.37×;
- Field of view (m @100m):H: 8.7°; V: 7°/H: 15.4 m; V: 12.3 m;
- Display:1440×1080, OLED;
- Battery Life:<7.5hrs.
Share:
The Pixfra ARC LRF A650 Pro thermal monocular is designed in a compact, lightweight format, providing high-quality thermal imaging performance. The Pixfra ARC LRF A650 Pro thermal monocular features a 640×512 resolution sensor in 12 micron pixel pitch and with a 20mk NETD sensitivity. This new LRF enables accurate distance measurements at a range of up to 1000m, providing valuable distance data in the field.
Integrated Laser Rangefinder
The built-in 1,000m LRF (±1m accuracy), enables precise field data collection for tactical decision-making without disrupting observation.
Ergonomic & Durable Design
Lightweight Magnesium Body: Ensures portability and resilience.
Contoured Grip & Eyecup: Features textured rubber for secure handling in adverse weather.
IP67 Rating: Protects against rain, humidity, and impacts, aligning with industry standards.
Extended Field Readiness
Dual 18650 Batteries: Offer 7-hour runtime per charge, ideal for sustained use.
Quick-Swap Battery Design: Enables seamless power management during extended missions.
Collaborative Observation Features
Pixfra Outdoor App: Share live feeds with up to four users within 20m for team-based monitoring.
Six Colour Palettes: Optimise visibility across environments, enhance adaptability throughout the day.
Features
- Vanadium oxide uncooled focal plane detector
- Fully integrated 1000m laser range finder
- FHD OLED display
- Replaceable 18650 battery
- Left and right-hand user-friendly design
- Lightweight and portable
- Six colour palettes
- Built-in 32GB
- IP67 rated
Warranty
This comes with a 3-year warranty from Pixfra.
Learn More： Pixfra
| Model | ARC LRF A650 |
|---|---|
| Thermal Sensor | 640×512, 12 μm |
| Spectral Range | 8 μm – 14 μm |
| Sensitivity (NETD) | ≤20 mK@f/1.0, 25 °C |
| Focal Length (Lens) | 50mm |
| Aperture | F1.0 |
| Field of View | H: 8.7°; V: 7°/H: 15.4 m; V: 12.3 m (@100 m) |
| Focus Control | Manual |
| Close Focus Distance | 2m (6.56ft) |
| Detection Distance | 2600m |
| Recognition Distance | 1600m |
| Identification Distance | 1000m |
| Magnification | 3.37× |
| Frame Rate | 50 Hz |
| Display Screen | 1440×1080, OLED |
| Color Palettes | 6 (white hot/black hot/iron red/alarm/emerald/amber) |
| Video Compression | H.264 |
| Diopter | –5D to +3D |
| Eye Relief | 15mm |
| Exit Pupil | 8mm |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Video Recorder | Yes |
| Snapshot | Yes |
| Wi-Fi Hotspot | Yes |
| Hot Spot Track | Yes |
| FFC Calibration | Auto, Manual, External Correction |
| Storage | Built-in EMMC 32GB |
| Max. Distance (LRF) | 1,000 m (3,280.84 ft) |
| Min. Distance (LRF) | 10 m (32.81 ft) |
| Battery Type | Replaceable 18650 battery |
| Battery Life | <7.5hrs |
| Port | USB Type-C |
| Operating Temperature | –30 °C to +55 °C |
| Protection Grade | IP67 |
| Product Dimensions | 186mm × 59mm × 82mm |
| Net Weight | 430g |
