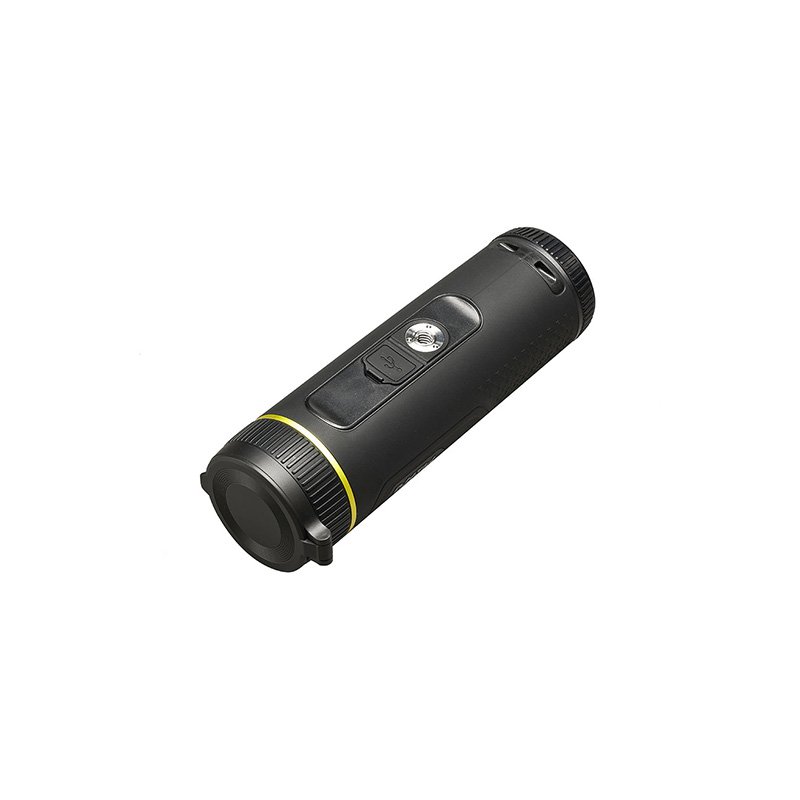

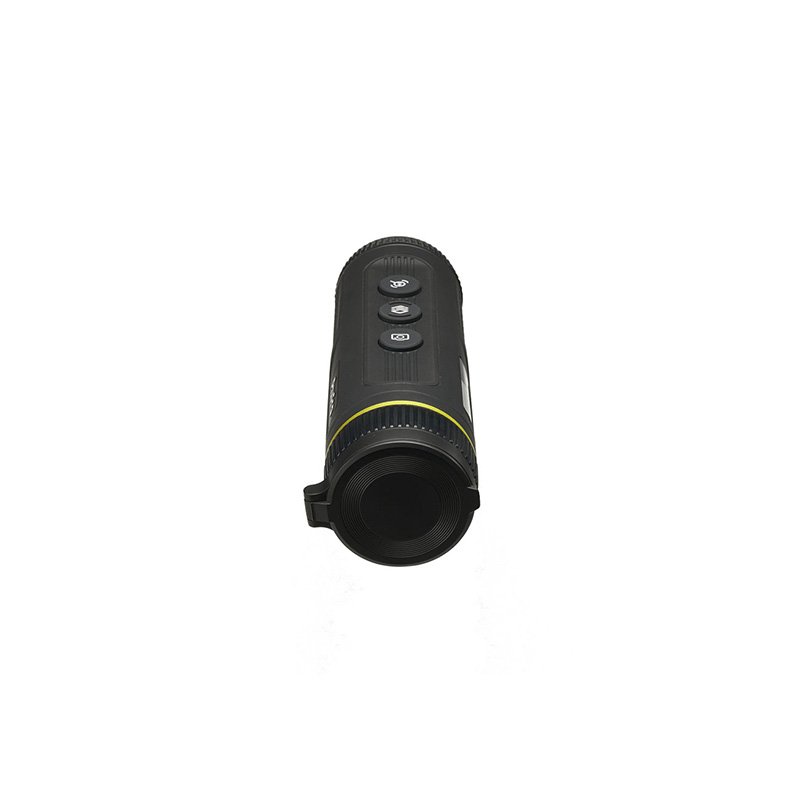

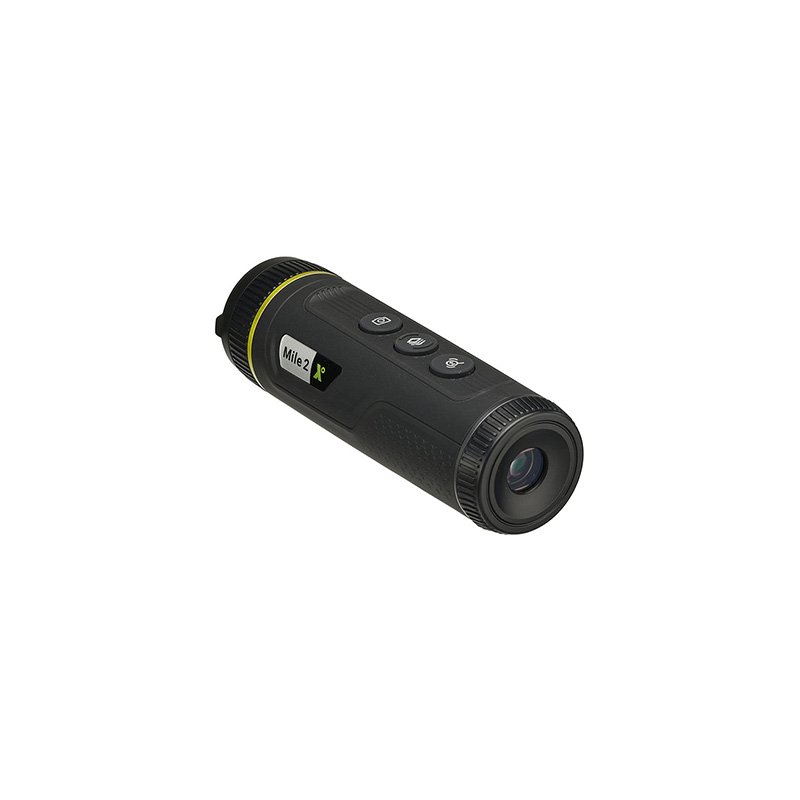

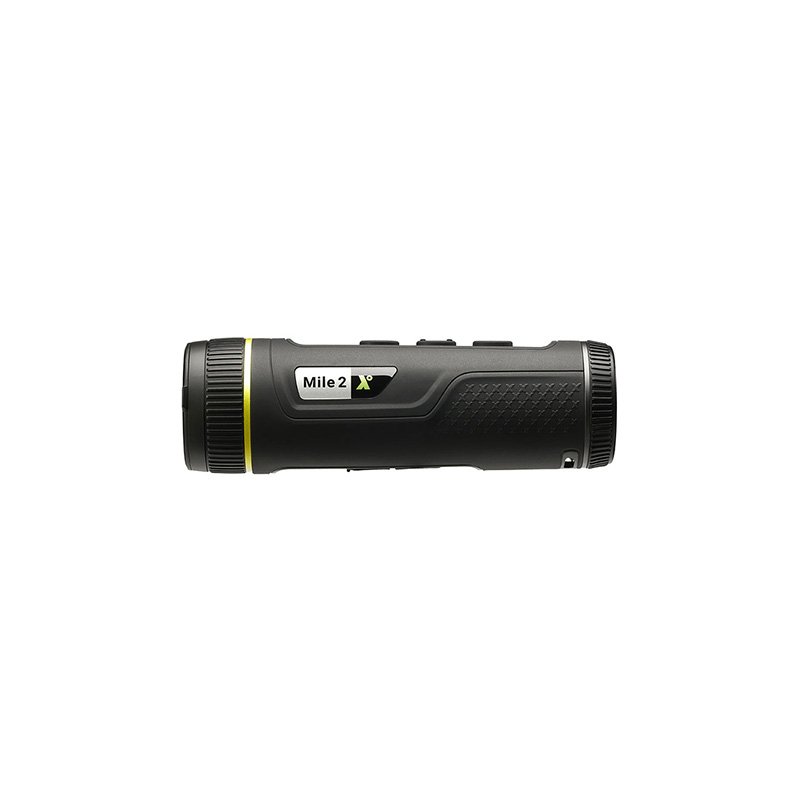

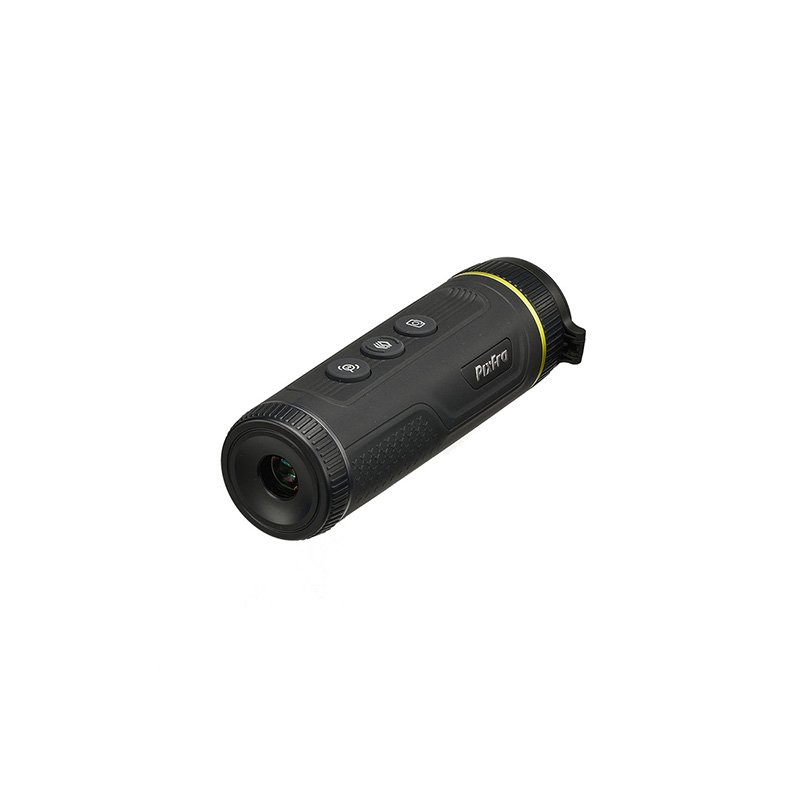

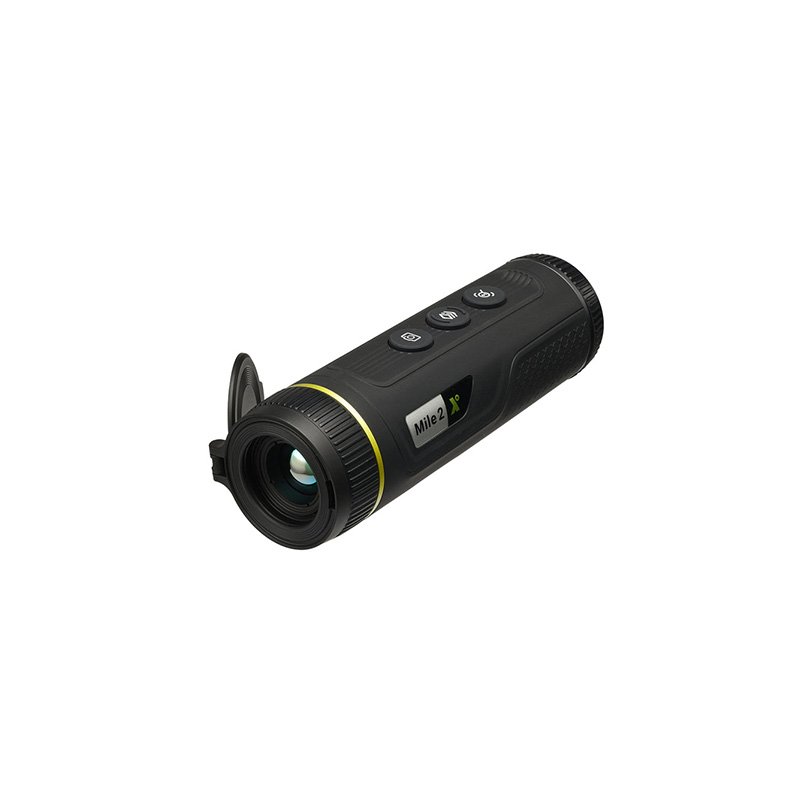

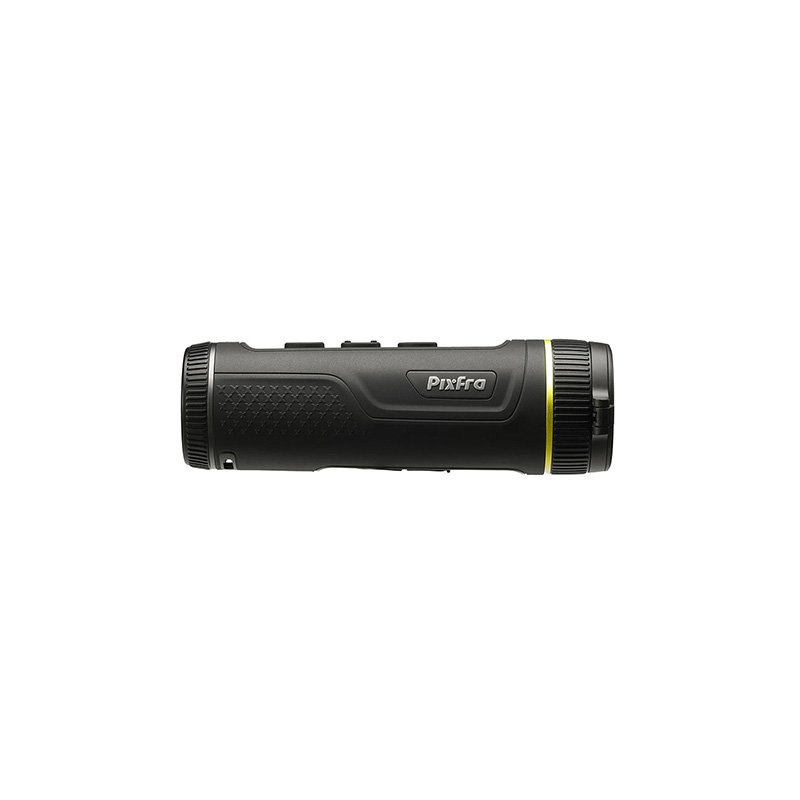

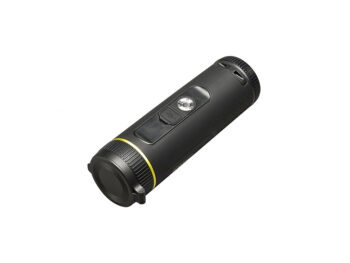

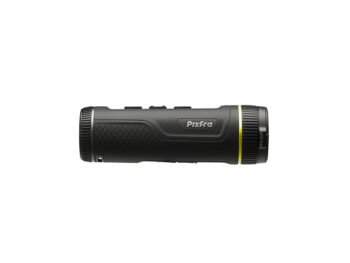

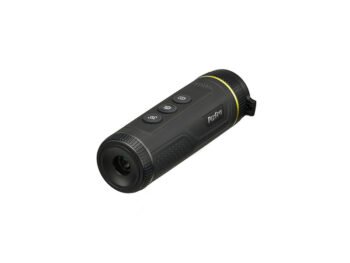

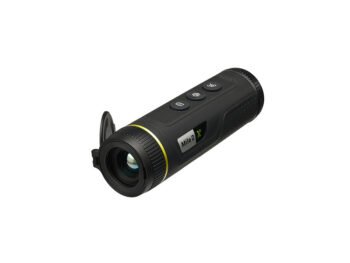

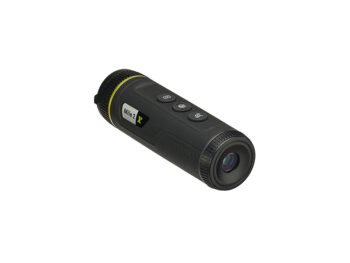

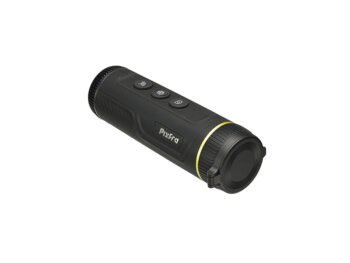

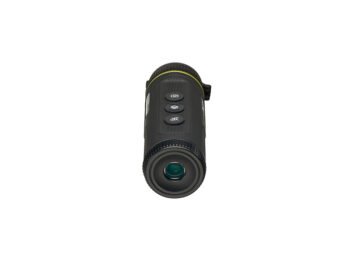

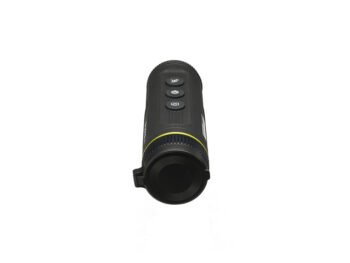

Pixfra MILE 2 M425 25MK Thermal Imaging Monocular
£959.95 Incl.VAT
￡799.96(Ex.VAT)
The Pixfra Mile 2 M425 thermal monocular features a 12 micron 384×288 resolution, <25mk NETD sensor and F1.0 25mm lens system that provides a detection range of up to 1300m and base magnification of 2.70x.
- Field of view (m @100m):H: 10.9°; V: 8.2°/H: 19.2 m; V: 14.4 m;
- Display:800×600, 0.32 inch OLED;
- Battery Life:＜8.0hrs.
Share:
The Pixfra Mile 2 M425 thermal imaging monocular packs a powerful punch for such a compact and lightweight device. With a 384×288, 12μm, <25mK NETD thermal sensor and a powerful 25mm f1.0 objective lens, this monocular will reveal even the smallest heat signature at a range of up to 1300m and provide a generous 10.9° FOV. Plus, with a strong Wi-Fi connection, the Pixfra Mile 2 M425 thermal imaging monocular can connect to up to four smart devices, allowing for effortless group sharing at a range of up to 40m.
Core Thermal Imaging Capabilities
The M425 employs a 384×288 sensor (12μm pixel pitch) with <25mK NETD sensitivity. Its 25mm F1.0 lens enables a 1,300m detection range and 10.9° FOV, ideal for capturing small heat signatures in expansive environments.
Optimized Design for Portability
Compact Build: Slimmer and lighter than previous iterations, with a streamlined top-panel button layout integrated into the Pixfra logo.
IP67 Protection: The Mile 2 M425 will ensure a powerful performance in any weather condition thanks to its IP67 rating, protecting the device against dust and water ingress.
Ergonomic Accessories: Includes a neck strap, wrist strap, and soft pouch for secure transport.
Enhanced Visual Output & Connectivity
OLED Display: An 800×600 resolution, 0.32-inch screen delivers vivid imagery.
Wi-Fi Sharing: Connect up to four devices via the Pixfra app for group observations within a 40m range.
Battery & Operational Efficiency
8.0-Hour Runtime: The Mile 2 M425 features a rechargeable long-life battery, providing up to 8.0 hours of effective power on a single charge (depending on temperature), keeping observations going through the day and well into the night.
Durability: Magnesium alloy construction ensures resilience against impacts and humidity.
Features
- 384×288, 12μm, <25mK NETD thermal sensor
- 25mm f1.0 objective lens
- 1300m detection range
- Built-in video recording
- Built-in Wi-Fi
- Seamless connectivity of up to 4 smart devices
Warranty
This comes with a 3-year warranty from Pixfra.
Learn More： Pixfra
| Model | Mile 2 M425 |
|---|---|
| Thermal Sensor | 384×288, 12 μm |
| Spectral Range | 8 μm – 14 μm |
| Sensitivity (NETD) | ＜25 mK |
| Focal Length (Lens) | 25mm |
| Aperture | F1.0 |
| Field of View | H: 10.9°; V: 8.2°/H: 19.2 m; V: 14.4 m (@100 m) |
| Focus Control | Manual |
| Close Focus Distance | 2m (6.56ft) |
| Detection Distance | 1300m |
| Magnification | 2.70× |
| Frame Rate | 50 Hz |
| Display Screen | 800×600, 0.32 inch OLED |
| Color Palettes | 6 (white hot/black hot/iron red/alarm/emerald/amber) |
| Video Compression | H.264 |
| Diopter | –5D to +3D |
| Eye Relief | 15mm |
| Exit Pupil | 6mm |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Video Recorder | Yes |
| Snapshot | Yes |
| Wi-Fi Hotspot | Yes |
| Hot Spot Track | Yes |
| FFC Calibration | Auto, Manual, External Correction |
| Storage | Built-in 16GB |
| Battery Type | Rechargeable Lithium Battery |
| Battery Life | <8.0hrs |
| Port | USB Type-C |
| Operating Temperature | –30 °C to +55 °C |
| Protection Grade | IP67 |
| Product Dimensions | 157.5 mm × 56.6 mm × 50.3 mm (6.20″ × 2.23″ × 1.98″) (L × W × H) |
| Net Weight | 320g |
